Hi Freesurfers,
I have several processed resting time series files (processed through AFNI) and I'd like to convert them to MNI space. I have done this successfully for T1Volumes and some ROI masks using mri_convert and tried to use the same code for the resting series. However, I've run into a few issues - namely that the transformation cuts off part of the top of the cortex.
My code:
*mri_convert -it nii -ot mgz CleanData_RestState.nii.gz CleanData_RestState.mgz*
*mri_convert CleanData_RestState.mgz --apply_transform transforms/talairach.xfm * *-oc 0 0 0 CleanData_RestState_talairach.mgz *
*mri_convert CleanData_RestState_talairach.mgz \ cleanData_RestState_talairach.nii.gz*

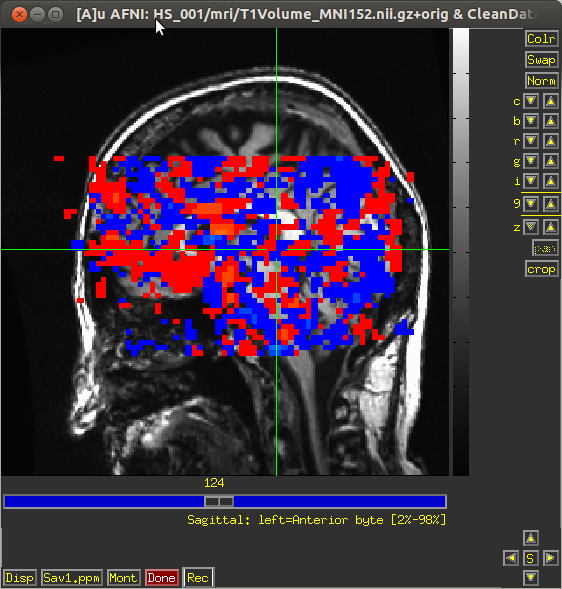

The final time series file, overlayed on the transformed T1Volume, is below.
[image: Inline image 1]
Any suggestions? How big a problem is this?
Thanks!
Hi Freesurfers,
I have several processed resting time series files (processed through AFNI) and I'd like to convert them to MNI space. I have done this successfully for T1Volumes and some ROI masks using mri_convert and tried to use the same code for the resting series. However, I've run into a few issues - namely that the transformation cuts off part of the top of the cortex.
My code:
mri_convert -it nii -ot mgz CleanData_RestState.nii.gz CleanData_RestState.mgz
mri_convert CleanData_RestState.mgz --apply_transform transforms/talairach.xfm \ -oc 0 0 0 CleanData_RestState_talairach.mgz
mri_convert CleanData_RestState_talairach.mgz \ cleanData_RestState_talairach.nii.gz
The final time series file, overlayed on the transformed T1Volume, is below.
Any suggestions?
Thanks!
Paul Beach DO/PhD candidate - Year VI Michigan State University
- College of Osteopathic Medicine
- Neuroscience Program
- MSU Cognitive and Geriatric Neurology Team (CoGeNT)
What space is the RS data in? If native functional space, I would register to the anatomical (bbregister), then use mri_vol2vol with the --fstal option
On 05/08/2014 04:31 PM, Paul Beach wrote:
Hi Freesurfers,
I have several processed resting time series files (processed through AFNI) and I'd like to convert them to MNI space. I have done this successfully for T1Volumes and some ROI masks using mri_convert and tried to use the same code for the resting series. However, I've run into a few issues - namely that the transformation cuts off part of the top of the cortex.
My code:
/mri_convert -it nii -ot mgz CleanData_RestState.nii.gz CleanData_RestState.mgz/ / / /mri_convert CleanData_RestState.mgz --apply_transform transforms/talairach.xfm / /-oc 0 0 0 CleanData_RestState_talairach.mgz / / / /mri_convert CleanData_RestState_talairach.mgz \ cleanData_RestState_talairach.nii.gz/
The final time series file, overlayed on the transformed T1Volume, is below.
Inline image 1
Any suggestions?
Thanks!
Paul Beach DO/PhD candidate - Year VI Michigan State University
- College of Osteopathic Medicine
- Neuroscience Program
- MSU *Co*gnitive and *Ge*riatric *N*eurology *T*eam (*CoGeNT*)
Freesurfer mailing list Freesurfer@nmr.mgh.harvard.edu https://mail.nmr.mgh.harvard.edu/mailman/listinfo/freesurfer
Doug,
Thank you for the response. You are correct in that it was originally in native EPI space. I'll try out your suggestions.
Cheers
On Fri, May 9, 2014 at 1:51 PM, Douglas N Greve greve@nmr.mgh.harvard.eduwrote:
What space is the RS data in? If native functional space, I would register to the anatomical (bbregister), then use mri_vol2vol with the --fstal option
On 05/08/2014 04:31 PM, Paul Beach wrote:
Hi Freesurfers,
I have several processed resting time series files (processed through AFNI) and I'd like to convert them to MNI space. I have done this successfully for T1Volumes and some ROI masks using mri_convert and tried to use the same code for the resting series. However, I've run into a few issues - namely that the transformation cuts off part of the top of the cortex.
My code:
/mri_convert -it nii -ot mgz CleanData_RestState.nii.gz CleanData_RestState.mgz/ / / /mri_convert CleanData_RestState.mgz --apply_transform transforms/talairach.xfm / /-oc 0 0 0 CleanData_RestState_talairach.mgz / / / /mri_convert CleanData_RestState_talairach.mgz \ cleanData_RestState_talairach.nii.gz/
The final time series file, overlayed on the transformed T1Volume, is below.
Inline image 1
Any suggestions?
Thanks!
Paul Beach DO/PhD candidate - Year VI Michigan State University
- College of Osteopathic Medicine
- Neuroscience Program
- MSU *Co*gnitive and *Ge*riatric *N*eurology *T*eam (*CoGeNT*)
Freesurfer mailing list Freesurfer@nmr.mgh.harvard.edu https://mail.nmr.mgh.harvard.edu/mailman/listinfo/freesurfer
-- Douglas N. Greve, Ph.D. MGH-NMR Center greve@nmr.mgh.harvard.edu Phone Number: 617-724-2358 Fax: 617-726-7422
Bugs: surfer.nmr.mgh.harvard.edu/fswiki/BugReporting FileDrop: https://gate.nmr.mgh.harvard.edu/filedrop2 www.nmr.mgh.harvard.edu/facility/filedrop/index.html Outgoing: ftp://surfer.nmr.mgh.harvard.edu/transfer/outgoing/flat/greve/
Freesurfer mailing list Freesurfer@nmr.mgh.harvard.edu https://mail.nmr.mgh.harvard.edu/mailman/listinfo/freesurfer
