External Email - Use Caution
Was the rigid alignment derived from mris_register?
Matt.
From: Li, Jian,PhD JLI112@mgh.harvard.edu Date: Wednesday, August 5, 2026 at 11:13 AM To: Glasser, Matthew glasserm@wustl.edu; Freesurfer support list freesurfer@nmr.mgh.harvard.edu Subject: Re: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
Hi Matt,
Yes, JOSA has been available for quite a while since FreeSurfer 8.0.0 through a simple “-josareg” flag in the recon-all command.
Right side shows the functional improvement relative to the rigid rotation. Although FreeSurfer (mris_register) did not substantially outperform rigid in terms of functional alignment, it is more stable than others. Left panel, in contrast, shows the performance in alignment of folding patterns, where JOSA performs significantly better and should help quite a bit in various downstream tasks.
Best, Andrew
From: Glasser, Matthew glasserm@wustl.edu Date: Wednesday, August 5, 2026 at 11:40 To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu; Li, Jian,PhD JLI112@mgh.harvard.edu Subject: Re: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution Hi Bruce,
It’s great that you have JOSA available in FreeSurfer now! I agree that it is an important upgrade over mris_register.
One thing that is a little weird about your graph—why is FreeSurfer so tightly clustered relative to the other tools in the right-hand panel or FreeSurfer the left-hand panel? That is not something that I would expect to see based on my experience with the algorithm.
Matt.
From: Fischl, Bruce R.,PHD BFISCHL@mgh.harvard.edu Date: Wednesday, August 5, 2026 at 10:30 AM To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu; Li, Jian,PhD JLI112@mgh.harvard.edu Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
Hi Matt
Yes, about 15% of the population has a folding variant that our old code struggled with. JOSA resolves many/most of those and also significantly outperforms other spherical registration in terms of both folding alignment and functional alignment. This is the bio archives link:
https://secure-web.cisco.com/17fHBKO6TPIzygWDHkuO9-ifV7APDgsfp-mDBV0Wjz9gQrf...https://secure-web.cisco.com/1OryQNAwG92qEYESR5HSsFuF_QZUgNDNjQmM9AnN7YJShvEVk2_ro6g9Z97J2FrANj3MtxLf_ZgbtfW_QWCBO-ljQNhdm6mN9fK7EGFlO4Lo-sIazhkwpmnUX-R9VKfvDD65o0iHY7umkYhg42Hu1csJeVaoHxrgxDv3Gpchj5l67fPHxSQH1NkP0a1rrXhAeoT5aaioNhf5xaVAyEPX1lLcScHjWDNYsu8TLc_JvIrH7Sv1jemYUXYOBadu4A67aPb9uA2436mNNtqVXmDQdqdF2rCWWMYMKlxhogQcXa5q3y8ef3oi2ZDbH640cAJloIYeHLwSRAZjs-06vAmfBRw/https%3A%2F%2Farxiv.org%2Fabs%2F2311.08544
and the Med. Image Analysis published link:
https://secure-web.cisco.com/1KIRhAMIGpdTsba3q6GKAt_orVD_1ZK6nMERDNXghUbcboS...https://secure-web.cisco.com/1OcBMbyd4SI030xJGOci4aomk92uDXm2qf_3Fi_v8OrNvM86Dt5VyXVXaF9GnjoZkPcXfrINyTlgvomB0go8Jn8qr8--QTaNMJtA_XMB_i_CgsF01aeaab76Mv3-SqedvNW1u85z1Tz_Jwjcz2lEQJP_IMNMbGWGb9-KX2bTDXtOMomBwh0cKDfJG3r_B3s94X9z0PZ7b7QtTYaBqW_N88Nlm46AgDhEPEV6MeRzQ0qf53HKT3FJjIuekusMrbi9_pDcZCfI0Zm8a8mSwCT_kOEosvTbhjScL5yVPkX5d5p2fIumB1XdOQvImMYQoLH8Q-ULZmrmaoWwouGKUR-bD4g/https%3A%2F%2Fpmc.ncbi.nlm.nih.gov%2Farticles%2FPMC12867183%2F

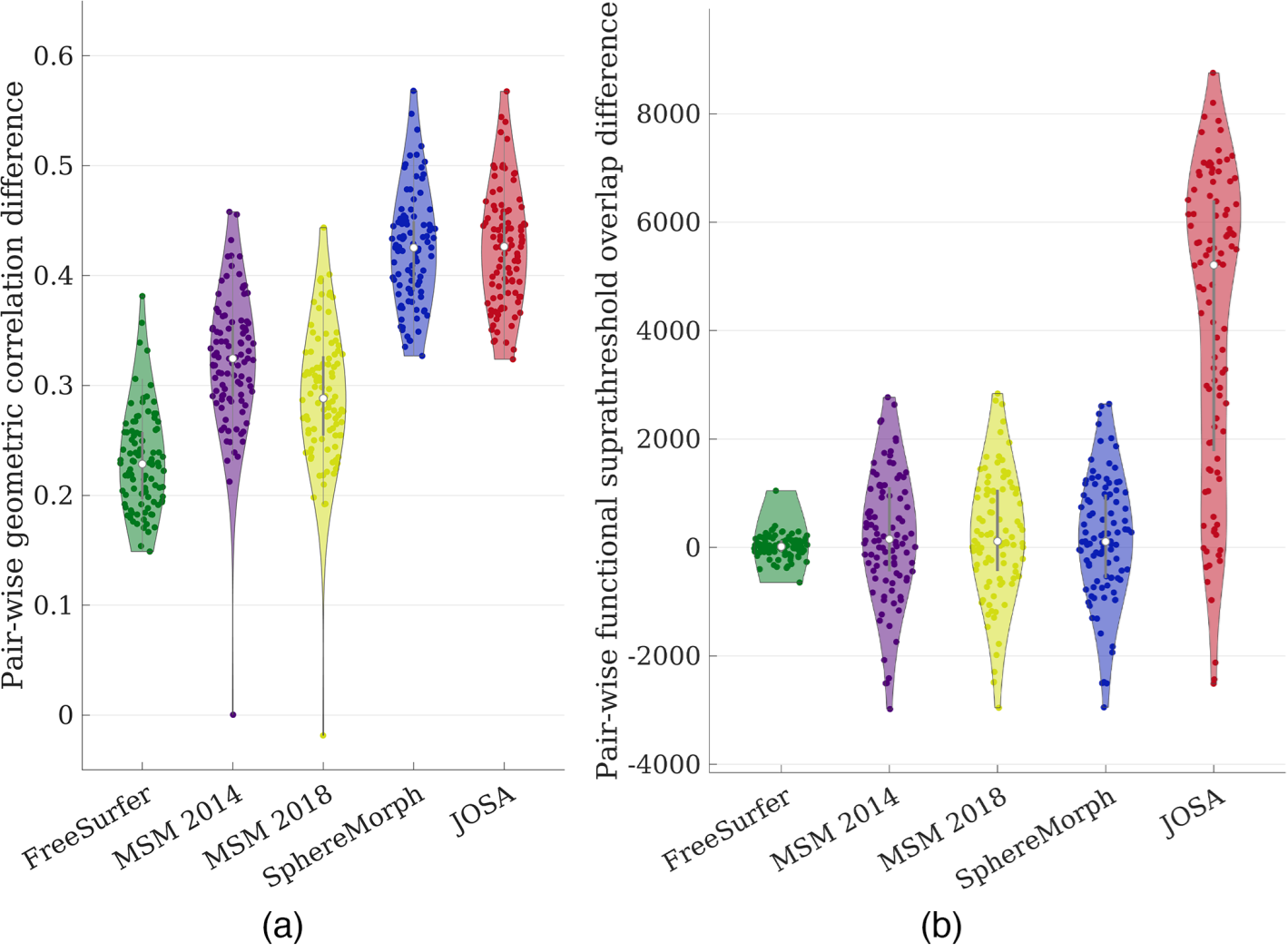

here is the relevant figure (4): [cid:image002.png@01DD24CD.C2FF9BD0]
So in my opinion better to fix this using the high-resolution registration up front rather than let it be blurred out downstream Cheers Bruce
From: Glasser, Matthew glasserm@wustl.edu Sent: Tuesday, August 4, 2026 9:08 PM To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu; Li, Jian,PhD JLI112@mgh.harvard.edu Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution Hi Donna,
We have a few HCP individuals with this behavior as well. I have one of these cases in a talk I give to neuroradiology trainees. Most of them get it wrong too—it isn’t the easiest problem to solve with folding alone, though it would be interesting if folding registrations trained with multi-modal features like JOSA are better equipped to handle this.
As I see in your ppt. we don’t really worry about this in the HCP Pipelines context because it always gets corrected when we run multi-modal registration.
Matt.
From: Dierker, Donna <donna@wustl.edumailto:donna@wustl.edu> Date: Tuesday, August 4, 2026 at 3:12 PM To: Freesurfer support list <freesurfer@nmr.mgh.harvard.edumailto:freesurfer@nmr.mgh.harvard.edu>; Li, Jian,PhD <JLI112@mgh.harvard.edumailto:JLI112@mgh.harvard.edu> Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration Hi Madison, Bruce, and Andrew,
I also have been looking at this issue, since most of the labs I work for use Freesurfer parcels as features in machine learning models.
I'm adding to these slides as I learn more about the issue:
https://secure-web.cisco.com/102EtLV9UnpQ9nx1CCw1q69d2SPnEvNC4goGHiEnyzXSfVz...https://secure-web.cisco.com/1KhR48Qvp4KsN3QfBMwFogNHJ4HrbBdH0dka_i8wA3EYk_6DiyLHBRx8wqzbM3MiqoSeAXUqh9hv3-oza81oYBriaMSmHd4vdmXsnGnYEkdb6fFKaXmVNMgfD_e_dtWmQqSsTGyKqUVJF4SIdx7Sb01VYbSyrH_poEP_Pm7gW6GzssuzkiJcNPwN_VULdpshzpJ20im4OWRjXqxnNrtlvr8_nmb8glZBOtBjNiMSW9Bumv42NM_hDelwMbSnDIMNTib34PycULwR3N5b84Ou8__se_MTWqNtd1tL2gbDEq-TdoNIRPnc9mAkrMWi-fF2batgI_oMj1SzoN1O2amXASQ/https%3A%2F%2Fwustl.box.com%2Fs%2F364hrybanrb9zdpcaodk7g8p96lk2nwt
We greatly appreciate your help.
Donna
________________________________ From: Fischl, Bruce R.,PHD <BFISCHL@mgh.harvard.edumailto:BFISCHL@mgh.harvard.edu> Sent: Tuesday, August 4, 2026 10:47 AM To: Freesurfer support list <freesurfer@nmr.mgh.harvard.edumailto:freesurfer@nmr.mgh.harvard.edu>; Li, Jian,PhD <JLI112@mgh.harvard.edumailto:JLI112@mgh.harvard.edu> Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
Hi Mackenzie
This is almost certainly an error in the spherical registration. You can try Andrew Li’s JOSA algorithm, which is likely to fix this. Andrew: can you provide directions on how to run JOSA in the current recon-all?
Cheers
Bruce
From: Mitchell, Mackenzie <macmitch@illinois.edumailto:macmitch@illinois.edu> Sent: Tuesday, August 4, 2026 8:35 AM To: freesurfer@nmr.mgh.harvard.edumailto:freesurfer@nmr.mgh.harvard.edu Subject: [Freesurfer] Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution
Hello,

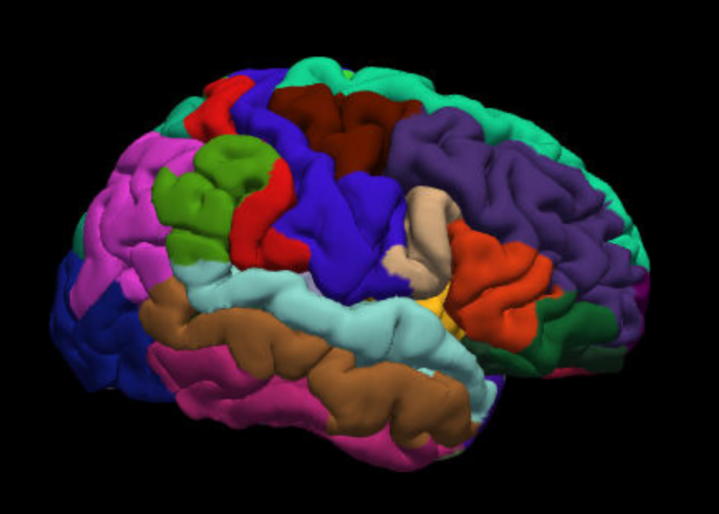

We are seeing that in some cases (13/167 subjects) FreeSurfer v7.3.2 incorrectly labeled the central sulcus in at least one hemisphere (see example below). In all cases, FreeSurfer is labeling the postcentral sulcus as the central sulcus. In one case, this is happening twice for the same subject who participated in two independent projects (i.e., we find this issue with different T1s and Freesurfer runs). See example below.
[HUBS05_RH_looksincorrect.png]
We have checked the segmentations and alignments for all subjects and they all look correct. We think this may be happening at the stage of normalization to fsaverage.

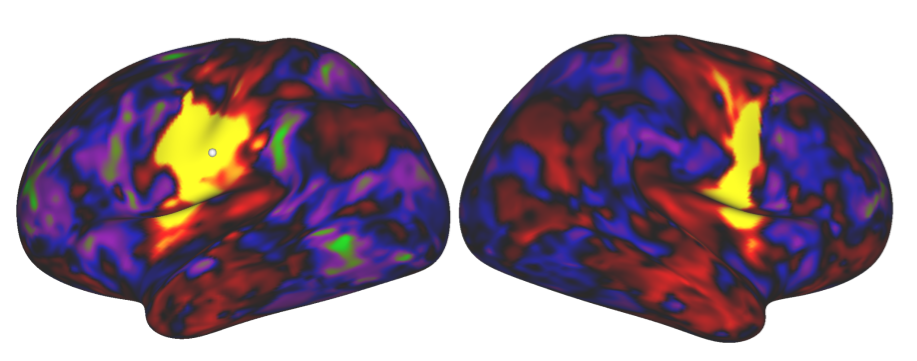

Most critically for us, it looks like this error is displacing the mapping of our functional data to the surface, as the motor network functional connectivity maps are shifted forward, as would be expected from the mislabeling. See example below.
[Bilateral motor FC.png]
In an attempt to resolve this issue, we have run FreeSurfer v8.2.0 on these 13 subjects. This resulted in the central sulcus being correctly identified in only 4/13 subjects.
Searching through past posts to this mailing list, we found this thread (https://secure-web.cisco.com/1MCbUy65pwm-NyzUw2VdWOwwFTfzvaBGo0cPTbRPvMr-20N...https://secure-web.cisco.com/1Av_o2jbMOBK2-QCYkM8TireDselI79riAZBd39wr1qcdaWxpVFWvPTfvYKfzSHgPaTGypglPAEAFttzuxyXpv60F1FoQssTAeRVkd8T3Pu70ykyiDJ3K4RHsKhvQqfeqVviyr9vtyaUdTa4y4X-CCYXd97YsHKFF2kHNdJ2lBtLrYl0g0SHDMakL-O7kcofSFNHaKOggHgv31xU3OKxMH6-Frr3xAIQoFJkLOmptNTP-VkUu3vVvok_CrBcIfvGuZS1DtQ9BvejG21zXLWrib-_jzQiwRLtIR6jrhT84PC5FAI4bcPjvOrQBRzBDAhnDDzteXq65xzLXfDleP2wCZQ/https%3A%2F%2Fwww.mail-archive.com%2Ffreesurfer%40nmr.mgh.harvard.edu%2Fmsg70250.html) which suggested to rotate the spherical registration (e.g., z+15 degrees). We found that with various rotation parameters we could improve the cortical parcellation in a handful of subjects. However, we do not currently use the cortical parcellations for our work and our primary concern is being able to accurately map functional data to the surface. We are not sure if spherical rotation is the right point/method to intervene.
All insight on how to intervene to improve fsaverage normalization would be greatly appreciated.
Thank you, Mackenzie
________________________________ The materials in this message are private and may contain Protected Healthcare Information or other information of a sensitive nature. If you are not the intended recipient, be advised that any unauthorized use, disclosure, copying or the taking of any action in reliance on the contents of this information is strictly prohibited. If you have received this email in error, please immediately notify the sender via telephone or return mail.
________________________________ The materials in this message are private and may contain Protected Healthcare Information or other information of a sensitive nature. If you are not the intended recipient, be advised that any unauthorized use, disclosure, copying or the taking of any action in reliance on the contents of this information is strictly prohibited. If you have received this email in error, please immediately notify the sender via telephone or return mail.
________________________________ The materials in this message are private and may contain Protected Healthcare Information or other information of a sensitive nature. If you are not the intended recipient, be advised that any unauthorized use, disclosure, copying or the taking of any action in reliance on the contents of this information is strictly prohibited. If you have received this email in error, please immediately notify the sender via telephone or return mail. The information in this e-mail is intended only for the person to whom it is addressed. If you believe this e-mail was sent to you in error and the e-mail contains patient information, please contact the Mass General Brigham Compliance HelpLine at https://secure-web.cisco.com/1M0ElAlahSpcuCZn1cFCsBylflYiq9noxxPE23GHynfMe0h... .
________________________________ The materials in this message are private and may contain Protected Healthcare Information or other information of a sensitive nature. If you are not the intended recipient, be advised that any unauthorized use, disclosure, copying or the taking of any action in reliance on the contents of this information is strictly prohibited. If you have received this email in error, please immediately notify the sender via telephone or return mail.
External Email - Use Caution
Hello all,
Thank you for the suggestion to run JOSA. We have now tried rerunning FreeSurfer 8.2.0 alone and FreeSurfer 8.2.0 with JOSA on our 13 participants.

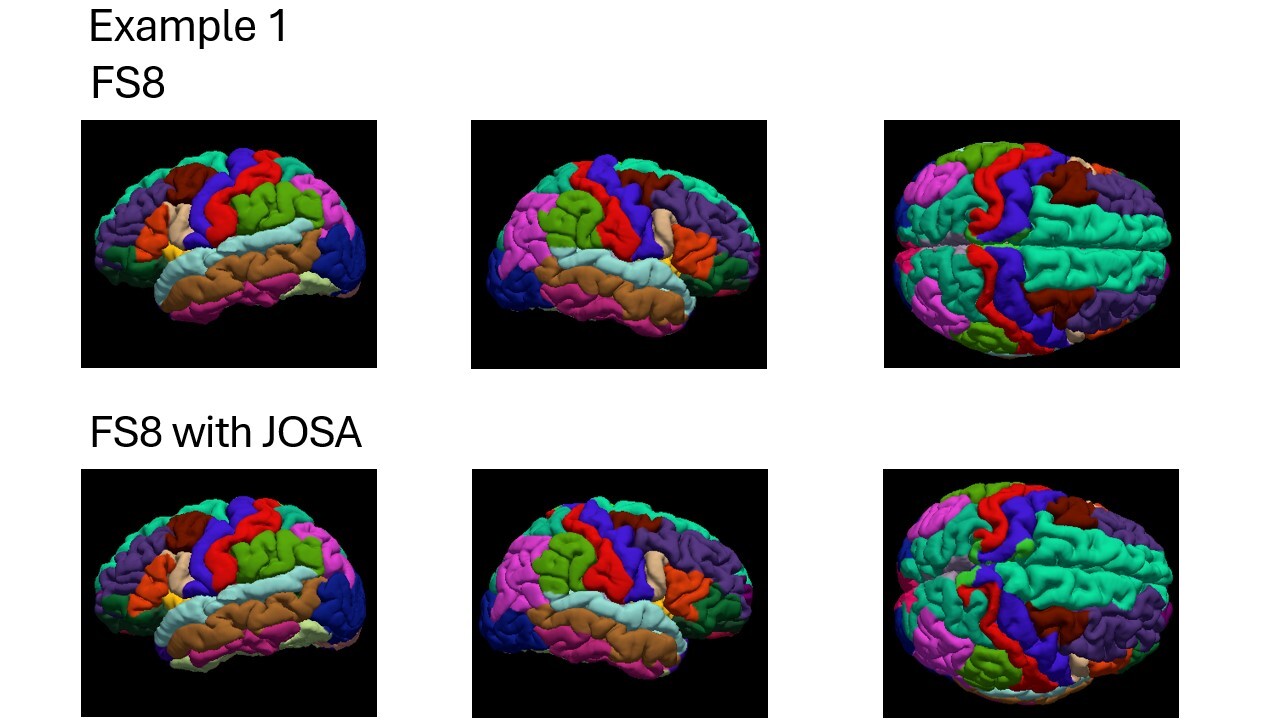

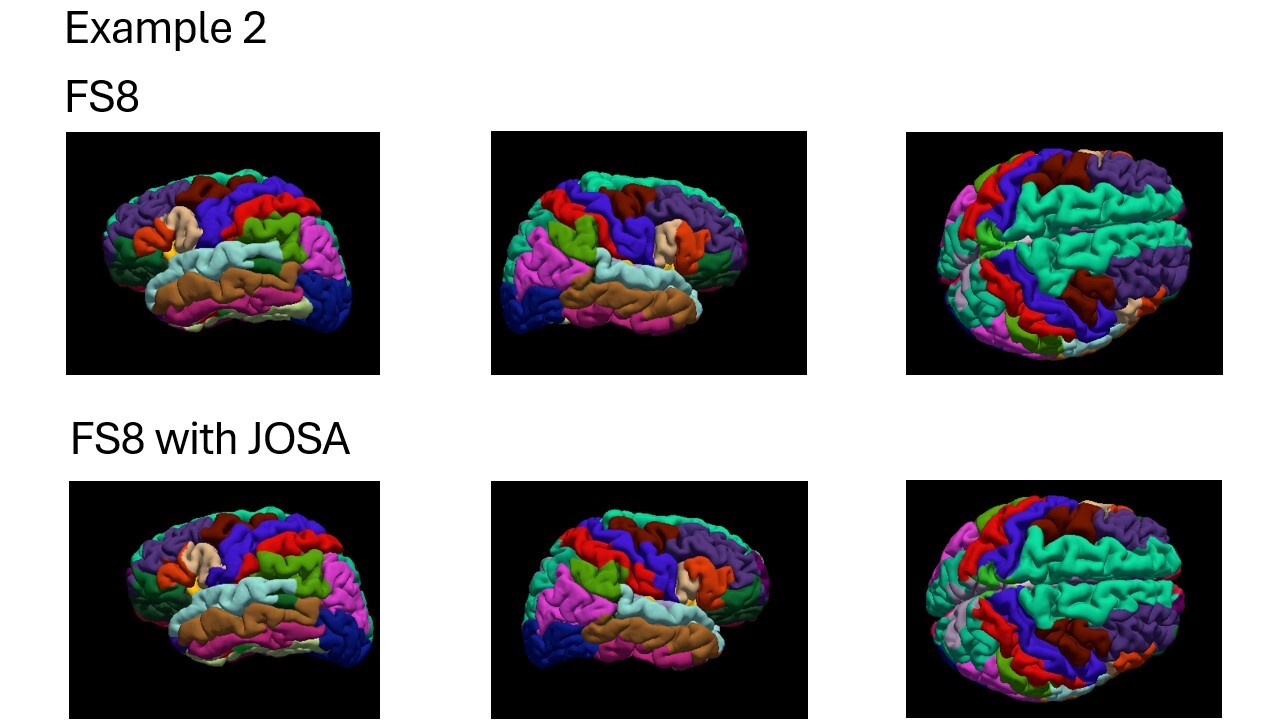

Out of 10 participants (3 are excluded from our fMRI analyses for high head motion), we have now been able to fix 8 participants:
* 5 participants were fixed in FreeSurfer 8 * These subjects exhibited improvement in FreeSurfer 8 with JOSA, but FreeSurfer 8 alone was better (see Example 1). * 3 participants were fixed in Freesurfer 8 with JOSA * [The 3 participants we excluded for high head motion were not fixed with either FreeSurfer 8 or FreeSurfer 8 + JOSA, despite having good T1w images and appropriate white matter/pial segmentations.]
We tried different combinations of T1w and T2w (e.g., T1w from different sessions, or T1w only without T2w), and in some cases the identification was better without the T2w or with a different T1w.
We still have 2 participants that we couldn't fix with any combination of the anatomical images, FS8, or FS8+JOSA (see Example 2).
Please let us know if you have suggestions for additional parameters/settings to try to salvage these remaining participants.
Thank you! Mackenzie
Mackenzie E Mitchell, PhD Postdoctoral Research Associate, Gratton Lab Department of Psychology University of Illinois at Urbana-Champaign https://secure-web.cisco.com/1KJaj5LMdfJjqg5y-k_MQpbYO0j_RI5Js6L6fMq8RJK3V-J... macmitch@illinois.edumailto:memitchell@fsu.edu Pronouns: She/Her/Hers
From: Glasser, Matthew glasserm@wustl.edu Date: Wednesday, August 5, 2026 at 12:23 PM To: Li, Jian,PhD JLI112@mgh.harvard.edu; Freesurfer support list freesurfer@nmr.mgh.harvard.edu Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution Was the rigid alignment derived from mris_register?
Matt.
From: Li, Jian,PhD JLI112@mgh.harvard.edu Date: Wednesday, August 5, 2026 at 11:13 AM To: Glasser, Matthew glasserm@wustl.edu; Freesurfer support list freesurfer@nmr.mgh.harvard.edu Subject: Re: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
Hi Matt,
Yes, JOSA has been available for quite a while since FreeSurfer 8.0.0 through a simple “-josareg” flag in the recon-all command.
Right side shows the functional improvement relative to the rigid rotation. Although FreeSurfer (mris_register) did not substantially outperform rigid in terms of functional alignment, it is more stable than others. Left panel, in contrast, shows the performance in alignment of folding patterns, where JOSA performs significantly better and should help quite a bit in various downstream tasks.
Best, Andrew
From: Glasser, Matthew glasserm@wustl.edu Date: Wednesday, August 5, 2026 at 11:40 To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu; Li, Jian,PhD JLI112@mgh.harvard.edu Subject: Re: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution Hi Bruce,
It’s great that you have JOSA available in FreeSurfer now! I agree that it is an important upgrade over mris_register.
One thing that is a little weird about your graph—why is FreeSurfer so tightly clustered relative to the other tools in the right-hand panel or FreeSurfer the left-hand panel? That is not something that I would expect to see based on my experience with the algorithm.
Matt.
From: Fischl, Bruce R.,PHD BFISCHL@mgh.harvard.edu Date: Wednesday, August 5, 2026 at 10:30 AM To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu; Li, Jian,PhD JLI112@mgh.harvard.edu Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
Hi Matt
Yes, about 15% of the population has a folding variant that our old code struggled with. JOSA resolves many/most of those and also significantly outperforms other spherical registration in terms of both folding alignment and functional alignment. This is the bio archives link:
https://secure-web.cisco.com/1tobBgFyMNTO0xEBYvC5325YhnWBVbP3XuRccwzweSwVP-K...https://secure-web.cisco.com/1pqbE5tqzZDteSMIN61eyiHp2UD9BU6kYH-1zUKNyABaxoNWI15aG7FuPzuRM03EWG1wt4svtf0VGUXAjy7NlzDsLjwgDdBo009yrUWbAhv1xK3jBaySJzhguWkmnwDRjEUSEcexA2y3MuUzO_rtdDGQaVqh_8--BC0WcmjJNNuu4_PY3n09hI9EXFSx7K0XyMM-maRvc3zh3NcI9Q2AqXhhu2Hp3Hk46DesCVWnQPx77TRmY3s1o6QAIdPJ4p5IWu9P52sK09dGx0qOLUe-10eA9--7GZOtBREDmALSeKDMNhQYKV4kIsCzzf9Tq0iuVxCljOv4ceABQPrkwLgfZjeW8EFnzh4N6p8bfvGuT3wY/https%3A%2F%2Furldefense.com%2Fv3%2F__https%3A%2F%2Fsecure-web.cisco.com%2F1OryQNAwG92qEYESR5HSsFuF_QZUgNDNjQmM9AnN7YJShvEVk2_ro6g9Z97J2FrANj3MtxLf_ZgbtfW_QWCBO-ljQNhdm6mN9fK7EGFlO4Lo-sIazhkwpmnUX-R9VKfvDD65o0iHY7umkYhg42Hu1csJeVaoHxrgxDv3Gpchj5l67fPHxSQH1NkP0a1rrXhAeoT5aaioNhf5xaVAyEPX1lLcScHjWDNYsu8TLc_JvIrH7Sv1jemYUXYOBadu4A67aPb9uA2436mNNtqVXmDQdqdF2rCWWMYMKlxhogQcXa5q3y8ef3oi2ZDbH640cAJloIYeHLwSRAZjs-06vAmfBRw%2Fhttps*3A*2F*2Farxiv.org*2Fabs*2F2311.08544__;JSUlJSU!!DZ3fjg!_Rf4uoyChVPwHcZ5sATuYuNIiJWh4lGnr9DMMb1DpQxVpe7AvPzeZ6t4R0SsAr4pJoE2wjVO7JVbdMFgJDqtrsY$
and the Med. Image Analysis published link:
https://secure-web.cisco.com/1GOoUVD_BuVgnpLPVztF3E5s6eJZ83jZFoPgjx0_1oG-nvy...https://secure-web.cisco.com/1ZAzr24DGT3E_W_ORgv3NIpRuZJJlR5IwlUAciftb2WMVfCQJP3Pu2en8oWRNWWlCMQ3hnNKEcNo16wGpjCBXCvYHaxfIYQAr3N7K4BjNZVAV5q943hQiIYeoS-anIOjwG_deWFRqqQPKoin3V8G1c2bGLq3-JoTZJ8BBb8sDlZDQ67XVNGX53SBE-Owoh2kYiWljre5d0SrpoquozHyTVFcF8thqk1D9dpDIIBDzWY6MOBrC75di-f8JEvJTkdV_WKd6MCO5LS1dGy1iVsALV9oI9JQ9aP65wqGyYgzRXwvjX0yRMzmuUkRAJt5ScMaVQRUb-rlKaZYzNGri9muFZswnH4Lq69xmST5_ZtarddE/https%3A%2F%2Furldefense.com%2Fv3%2F__https%3A%2F%2Fsecure-web.cisco.com%2F1OcBMbyd4SI030xJGOci4aomk92uDXm2qf_3Fi_v8OrNvM86Dt5VyXVXaF9GnjoZkPcXfrINyTlgvomB0go8Jn8qr8--QTaNMJtA_XMB_i_CgsF01aeaab76Mv3-SqedvNW1u85z1Tz_Jwjcz2lEQJP_IMNMbGWGb9-KX2bTDXtOMomBwh0cKDfJG3r_B3s94X9z0PZ7b7QtTYaBqW_N88Nlm46AgDhEPEV6MeRzQ0qf53HKT3FJjIuekusMrbi9_pDcZCfI0Zm8a8mSwCT_kOEosvTbhjScL5yVPkX5d5p2fIumB1XdOQvImMYQoLH8Q-ULZmrmaoWwouGKUR-bD4g%2Fhttps*3A*2F*2Fpmc.ncbi.nlm.nih.gov*2Farticles*2FPMC12867183*2F__;JSUlJSUl!!DZ3fjg!_Rf4uoyChVPwHcZ5sATuYuNIiJWh4lGnr9DMMb1DpQxVpe7AvPzeZ6t4R0SsAr4pJoE2wjVO7JVbdMFg7z6PXHs$
here is the relevant figure (4): [cid:image002.png@01DD24CD.C2FF9BD0]
So in my opinion better to fix this using the high-resolution registration up front rather than let it be blurred out downstream Cheers Bruce
From: Glasser, Matthew glasserm@wustl.edu Sent: Tuesday, August 4, 2026 9:08 PM To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu; Li, Jian,PhD JLI112@mgh.harvard.edu Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution Hi Donna,
We have a few HCP individuals with this behavior as well. I have one of these cases in a talk I give to neuroradiology trainees. Most of them get it wrong too—it isn’t the easiest problem to solve with folding alone, though it would be interesting if folding registrations trained with multi-modal features like JOSA are better equipped to handle this.
As I see in your ppt. we don’t really worry about this in the HCP Pipelines context because it always gets corrected when we run multi-modal registration.
Matt.
From: Dierker, Donna <donna@wustl.edumailto:donna@wustl.edu> Date: Tuesday, August 4, 2026 at 3:12 PM To: Freesurfer support list <freesurfer@nmr.mgh.harvard.edumailto:freesurfer@nmr.mgh.harvard.edu>; Li, Jian,PhD <JLI112@mgh.harvard.edumailto:JLI112@mgh.harvard.edu> Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration Hi Madison, Bruce, and Andrew,
I also have been looking at this issue, since most of the labs I work for use Freesurfer parcels as features in machine learning models.
I'm adding to these slides as I learn more about the issue:
https://secure-web.cisco.com/1yoTjrCGg0JEGbDrQ-MJEP5H2MuAExtczrwu9g-A3rrtikj...https://secure-web.cisco.com/11tCVcCw74NLRRdrXax7o0WGhIAMsuB3YRFQ2DTN0HCF5kP5RJAYjyyqjpax-iLJoDj0qpgK4Y_a5LWQnMYwomqn-bpJO4JDqo52d4KPiiM5JOcLP2e6ovjC0z-8HqufqfFMLO5nN2vA_8I_lQuf-yxqioXKnQvmLrMtNXUPN_ypAHBcwwD6We1D4jCyNoQgOX-Qz8q2dPQlfZvyXbrFnXO78413pdtA2Ufu774sf-NDu5a2l3AYETVeKWRM6LuU96ncqFFzSH-FNHN-4KceyXRPndyLANQQNAwyU7Z6f-JH5m0qouTRuYhB60zGQ7s4Vg7MJ03kLHnBg-0m7yqrBJtrMn2FV9Cfwu5GmcP7w2ko/https%3A%2F%2Furldefense.com%2Fv3%2F__https%3A%2F%2Fsecure-web.cisco.com%2F1KhR48Qvp4KsN3QfBMwFogNHJ4HrbBdH0dka_i8wA3EYk_6DiyLHBRx8wqzbM3MiqoSeAXUqh9hv3-oza81oYBriaMSmHd4vdmXsnGnYEkdb6fFKaXmVNMgfD_e_dtWmQqSsTGyKqUVJF4SIdx7Sb01VYbSyrH_poEP_Pm7gW6GzssuzkiJcNPwN_VULdpshzpJ20im4OWRjXqxnNrtlvr8_nmb8glZBOtBjNiMSW9Bumv42NM_hDelwMbSnDIMNTib34PycULwR3N5b84Ou8__se_MTWqNtd1tL2gbDEq-TdoNIRPnc9mAkrMWi-fF2batgI_oMj1SzoN1O2amXASQ%2Fhttps*3A*2F*2Fwustl.box.com*2Fs*2F364hrybanrb9zdpcaodk7g8p96lk2nwt__;JSUlJSU!!DZ3fjg!_Rf4uoyChVPwHcZ5sATuYuNIiJWh4lGnr9DMMb1DpQxVpe7AvPzeZ6t4R0SsAr4pJoE2wjVO7JVbdMFgIz32KD4$
We greatly appreciate your help.
Donna
________________________________ From: Fischl, Bruce R.,PHD <BFISCHL@mgh.harvard.edumailto:BFISCHL@mgh.harvard.edu> Sent: Tuesday, August 4, 2026 10:47 AM To: Freesurfer support list <freesurfer@nmr.mgh.harvard.edumailto:freesurfer@nmr.mgh.harvard.edu>; Li, Jian,PhD <JLI112@mgh.harvard.edumailto:JLI112@mgh.harvard.edu> Subject: [Freesurfer] Re: Misidentification of the central sulcus in fsaverage registration
Hi Mackenzie
This is almost certainly an error in the spherical registration. You can try Andrew Li’s JOSA algorithm, which is likely to fix this. Andrew: can you provide directions on how to run JOSA in the current recon-all?
Cheers
Bruce
From: Mitchell, Mackenzie <macmitch@illinois.edumailto:macmitch@illinois.edu> Sent: Tuesday, August 4, 2026 8:35 AM To: freesurfer@nmr.mgh.harvard.edumailto:freesurfer@nmr.mgh.harvard.edu Subject: [Freesurfer] Misidentification of the central sulcus in fsaverage registration
External Email - Use Caution
Hello,
We are seeing that in some cases (13/167 subjects) FreeSurfer v7.3.2 incorrectly labeled the central sulcus in at least one hemisphere (see example below). In all cases, FreeSurfer is labeling the postcentral sulcus as the central sulcus. In one case, this is happening twice for the same subject who participated in two independent projects (i.e., we find this issue with different T1s and Freesurfer runs). See example below.
[HUBS05_RH_looksincorrect.png]
We have checked the segmentations and alignments for all subjects and they all look correct. We think this may be happening at the stage of normalization to fsaverage.
Most critically for us, it looks like this error is displacing the mapping of our functional data to the surface, as the motor network functional connectivity maps are shifted forward, as would be expected from the mislabeling. See example below.
[Bilateral motor FC.png]
In an attempt to resolve this issue, we have run FreeSurfer v8.2.0 on these 13 subjects. This resulted in the central sulcus being correctly identified in only 4/13 subjects.
Searching through past posts to this mailing list, we found this thread (https://secure-web.cisco.com/1RD2-9x76fMaaNGgaaWJve3xkkTVdSRY-U85iLoik3nWHx3...https://secure-web.cisco.com/12PFmqpqeRhE2AiPmzeS0TVWFJ-uIrvGpkx5NLdcIfJQbqnp0qhnMK8yt3PAV1HDqxquW04lck504jfLyPvEq-XOkXLURc5P66tIYlP3zMifiJpE9P6hrkF7uEna0RSugXIfMGMPuJPg4L4H_G-4DmSvpvH1hehL0nRlW4G1ZA068gaMl_tS7gJSKL3IhQSpDG5BM6ImcDEyC3FHE31NZPXtClL7TmijygRquQSOaQiN_Rjruo0r28cWieFwfP4SSODZepO5GYII22cWl2t1-lctzogzC42BEKBMBxyi1OGpCJQ53r_bG79IZJMop_y1OCZBo6tMzzOVm3J_4ItSEPp3tlsqKQRfaoUIlRy9Q9dk/https%3A%2F%2Furldefense.com%2Fv3%2F__https%3A%2F%2Fsecure-web.cisco.com%2F1Av_o2jbMOBK2-QCYkM8TireDselI79riAZBd39wr1qcdaWxpVFWvPTfvYKfzSHgPaTGypglPAEAFttzuxyXpv60F1FoQssTAeRVkd8T3Pu70ykyiDJ3K4RHsKhvQqfeqVviyr9vtyaUdTa4y4X-CCYXd97YsHKFF2kHNdJ2lBtLrYl0g0SHDMakL-O7kcofSFNHaKOggHgv31xU3OKxMH6-Frr3xAIQoFJkLOmptNTP-VkUu3vVvok_CrBcIfvGuZS1DtQ9BvejG21zXLWrib-_jzQiwRLtIR6jrhT84PC5FAI4bcPjvOrQBRzBDAhnDDzteXq65xzLXfDleP2wCZQ%2Fhttps*3A*2F*2Fwww.mail-archive.com*2Ffreesurfer*40nmr.mgh.harvard.edu*2Fmsg70250.html__;JSUlJSUl!!DZ3fjg!_Rf4uoyChVPwHcZ5sATuYuNIiJWh4lGnr9DMMb1DpQxVpe7AvPzeZ6t4R0SsAr4pJoE2wjVO7JVbdMFgpEj0RaA$) which suggested to rotate the spherical registration (e.g., z+15 degrees). We found that with various rotation parameters we could improve the cortical parcellation in a handful of subjects. However, we do not currently use the cortical parcellations for our work and our primary concern is being able to accurately map functional data to the surface. We are not sure if spherical rotation is the right point/method to intervene.
All insight on how to intervene to improve fsaverage normalization would be greatly appreciated.
Thank you, Mackenzie
