External Email - Use Caution

Hi Eugenio,

Great, thank you! One last question - after I edit the aseg and wmparc files would you recommend that I only rerun the recon-all hippocampal-subfields-T2 step or should I rerun certain autorecon steps of recon-all?

Thank you! Jenna

Jenna K. Blujus, M.S. Graduate Student Neurobiology of Aging Laboratory University of Wisconsin-Milwaukee jkblujus@uwm.edu

________________________________ From: Jenna Katherine Blujus jkblujus@uwm.edu Sent: Wednesday, July 8, 2020 10:36 AM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Re: Freesurfer Hippocampal Subfield Misalignment

Hi Eugenio,

Thank you for the tips! This has happened to a number of my subjects but I have finished editing the HC label in their aseg files. How would I copy the HC from aseg.mgz to wmparc.mgz? Can you clarify what you mean by "you still need to fix the surrounding labels"?

Thank you, Jenna

Message: 3 Date: Tue, 7 Jul 2020 20:53:12 +0000 From: "Iglesias Gonzalez, Juan E." JIGLESIASGONZALEZ@mgh.harvard.edu Subject: Re: [Freesurfer] Freesurfer Hippocampal Subfield Misalignment To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu Message-ID: 85489126-5DC1-4464-810B-01A7E825895A@mgh.harvard.edu Content-Type: text/plain; charset="utf-8"

Dear Jenna, 1.Manually editing aseg.mgz fixes the initialization (super important). 2.Manually editing wmparc.mgz fixes the intensity priors (less important, but still important) If it?s only 1 subject in a bigger study, I?d probably call it a QC fail and leave it out. If it?s a single case you?re very interested in, I would edit both aseg.mgz and wmparc.mgz (you can copy the hippocampus from one into the other, but you still need to fix the surrounding labels). Cheers, /Eugenio

Juan Eugenio Iglesias Senior research fellow CMIC (UCL), MGH (HMS) and CSAIL (MIT) https://nam02.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.jeigles... Reply Forward

Jenna K. Blujus, M.S. Graduate Student Neurobiology of Aging Laboratory University of Wisconsin-Milwaukee jkblujus@uwm.edu

________________________________ From: Jenna Katherine Blujus Sent: Tuesday, July 7, 2020 3:23 PM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Freesurfer Hippocampal Subfield Misalignment

Hi Experts,

I ran the hippocampal subfield segmentation protocol using a T2 image that does not cover the whole brain in Freesurfer v6.0. I noticed that the alignment of the ?h.hippoSfLabels-T2.v10 output to the anatomical boundaries of the hippocampus in some of my subjects is off. For example, the left hippocampal subfield segmentation in one subject is superior and medial to the hippocampus. I checked the aseg.presurf file (since I am using v6.0) and indeed the whole left hippocampus is off.

I saw in a previous thread (https://www.mail-archive.com/freesurfer@nmr.mgh.harvard.edu/msg23942.html) that it was suggested to edit the hippocampal segmentation within the aseg file to potentially improve alignment of the subfield segmentation. However, a more recent post (https://www.mail-archive.com/freesurfer@nmr.mgh.harvard.edu/msg54543.html) stated that both the wmparc.mgz and aseg.mgz files would need to be edited and that this was not recommended. Do you have any recommendations on how to move forward? I did edit the hippocampal segmentation within the aseg.presurf file in one of my subjects and reran the subfield segmentation command which substantially improved the output (i.e., it overlays on the hippocampus after correction). Would you suggest that I continue with editing the aseg using previously published protocols on segmenting the hippocampus by hand or would you recommend something else?

Thanks in advance! Jenna

External Email - Use Caution

Hi Eugenio,

Ok, great! The inpaint script requires the applyCropping function. I tried finding a copy of the function on github but was unsuccessful. Do you have a copy of the applyCropping function?

Thanks, Jenna

________________________________ From: Jenna Katherine Blujus jkblujus@uwm.edu Sent: Thursday, July 9, 2020 8:05 PM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Re: Freesurfer Hippocampal Subfield Misalignment

Hi Eugenio,

Sorry! Can you specify how to copy the edits from aseg to wmparc within Matlab?

aseg=MRIread('aseg.presurf.mgz') wmparc=MRIread('wmparc.mgz') asegHC=find(aseg.vol == 17 | aseg.vol=53)

How would I then replace the data corresponding to the HC labels within wmparc with that of asegHC?

Thank you! Jenna

________________________________ From: Jenna Katherine Blujus jkblujus@uwm.edu Sent: Wednesday, July 8, 2020 5:10 PM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Re: Freesurfer Hippocampal Subfield Misalignment

Hi Eugenio,

Great, thank you! One last question - after I edit the aseg and wmparc files would you recommend that I only rerun the recon-all hippocampal-subfields-T2 step or should I rerun certain autorecon steps of recon-all?

Thank you! Jenna

Jenna K. Blujus, M.S. Graduate Student Neurobiology of Aging Laboratory University of Wisconsin-Milwaukee jkblujus@uwm.edu

________________________________ From: Jenna Katherine Blujus jkblujus@uwm.edu Sent: Wednesday, July 8, 2020 10:36 AM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Re: Freesurfer Hippocampal Subfield Misalignment

Hi Eugenio,

Thank you for the tips! This has happened to a number of my subjects but I have finished editing the HC label in their aseg files. How would I copy the HC from aseg.mgz to wmparc.mgz? Can you clarify what you mean by "you still need to fix the surrounding labels"?

Thank you, Jenna

Message: 3 Date: Tue, 7 Jul 2020 20:53:12 +0000 From: "Iglesias Gonzalez, Juan E." JIGLESIASGONZALEZ@mgh.harvard.edu Subject: Re: [Freesurfer] Freesurfer Hippocampal Subfield Misalignment To: Freesurfer support list freesurfer@nmr.mgh.harvard.edu Message-ID: 85489126-5DC1-4464-810B-01A7E825895A@mgh.harvard.edu Content-Type: text/plain; charset="utf-8"

Dear Jenna, 1.Manually editing aseg.mgz fixes the initialization (super important). 2.Manually editing wmparc.mgz fixes the intensity priors (less important, but still important) If it?s only 1 subject in a bigger study, I?d probably call it a QC fail and leave it out. If it?s a single case you?re very interested in, I would edit both aseg.mgz and wmparc.mgz (you can copy the hippocampus from one into the other, but you still need to fix the surrounding labels). Cheers, /Eugenio

Juan Eugenio Iglesias Senior research fellow CMIC (UCL), MGH (HMS) and CSAIL (MIT) https://nam02.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.jeigles... Reply Forward

Jenna K. Blujus, M.S. Graduate Student Neurobiology of Aging Laboratory University of Wisconsin-Milwaukee jkblujus@uwm.edu

________________________________ From: Jenna Katherine Blujus Sent: Tuesday, July 7, 2020 3:23 PM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Freesurfer Hippocampal Subfield Misalignment

Hi Experts,

I ran the hippocampal subfield segmentation protocol using a T2 image that does not cover the whole brain in Freesurfer v6.0. I noticed that the alignment of the ?h.hippoSfLabels-T2.v10 output to the anatomical boundaries of the hippocampus in some of my subjects is off. For example, the left hippocampal subfield segmentation in one subject is superior and medial to the hippocampus. I checked the aseg.presurf file (since I am using v6.0) and indeed the whole left hippocampus is off.

I saw in a previous thread (https://www.mail-archive.com/freesurfer@nmr.mgh.harvard.edu/msg23942.html) that it was suggested to edit the hippocampal segmentation within the aseg file to potentially improve alignment of the subfield segmentation. However, a more recent post (https://www.mail-archive.com/freesurfer@nmr.mgh.harvard.edu/msg54543.html) stated that both the wmparc.mgz and aseg.mgz files would need to be edited and that this was not recommended. Do you have any recommendations on how to move forward? I did edit the hippocampal segmentation within the aseg.presurf file in one of my subjects and reran the subfield segmentation command which substantially improved the output (i.e., it overlays on the hippocampus after correction). Would you suggest that I continue with editing the aseg using previously published protocols on segmenting the hippocampus by hand or would you recommend something else?

Thanks in advance! Jenna

External Email - Use Caution

Hi Eugenio,

Yes, I can - which files would you like and where should I upload them?

Thanks, Jenna

________________________________ From: Jenna Katherine Blujus jkblujus@uwm.edu Sent: Monday, July 13, 2020 6:29 PM To: freesurfer@nmr.mgh.harvard.edu freesurfer@nmr.mgh.harvard.edu Subject: Re: Freesurfer Hippocampal Subfield Misalignment

Hi Eugenio,

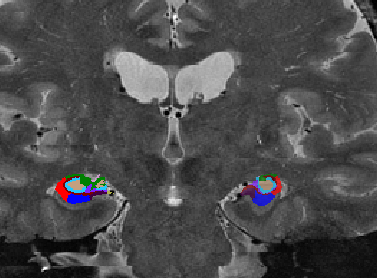

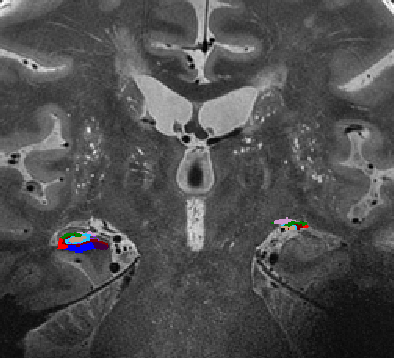

I reran the segmentations after editing the aseg.presurf.mgz files and copying the edited HC to the wmparc.mgz files but the segmentations did not improve. Is there anything else you would suggest to do? Here is an example of one of my subjects. As you can see the left segmentation is not aligned with the left hippocampus.

Thanks, Jenna

External Email - Use Caution

Hi Eugenio,

I am having trouble uploading the file through FTP. Can you send me an email to send the file to using the Martinos Center File Drop?

Thanks, Jenna
