New subject: easy_reg to build unbiased template: separating linear and non linear components

7 Sep 2024


      External Email - Use Caution
apologies if this is a duplicate, I seem to be having some trouble with the listserv.
[cid:5208cb3b-161c-4601-9f9c-1dd8840a03da]
I've really impressed with mri_easy_reg and I was hoping to use it in a similar way as ANTs built_template scripts, which requires separation of affine from nonlinear transforms for their unbiased template updating algorithm. However, mri_easy_reg only returns a single transform object, combining affine and nonlinear components.
I added an argument as an option for producing separate transforms
```
def main():
    parser.add_argument("--separate_transforms", default=None, help="(optional) Produce Affine and NonLinear Fields Separately, if 'a' produce combined transform too. If 'b', do not produce combined transform")
```
then include
```
        if args.separate_transforms is not None:
            sepAII3 = II2
            sepAJJ3 = JJ2
            sepAKK3 = KK2
            sepAaffine = torch.tensor(np.matmul(Mflo, atlas_aff), device='cpu')
            sepARAS_X = affine[0, 0] * sepAII3 + affine[0, 1] * sepAJJ3 + affine[0, 2] * sepAKK3 + affine[0, 3]
            sepARAS_Y = affine[1, 0] * sepAII3 + affine[1, 1] * sepAJJ3 + affine[1, 2] * sepAKK3 + affine[1, 3]
            sepARAS_Z = affine[2, 0] * sepAII3 + affine[2, 1] * sepAJJ3 + affine[2, 2] * sepAKK3 + affine[2, 3]
```
and
```
            if args.separate_transforms is not None:
                #create separate nonlinear naked field
                ndepth, nheight, nwidth, _ = f2r_field.shape
                # Create meshgrid indices for each dimension
                nII, nJJ, nKK = np.meshgrid(np.arange(ndepth), np.arange(nheight), np.arange(nwidth), indexing='ij')
                # Convert numpy arrays to PyTorch tensors
                nII2 = torch.tensor(nII, dtype=torch.float32, device='cpu')  # or device='cuda' if using GPU
                nJJ2 = torch.tensor(nJJ, dtype=torch.float32, device='cpu')
                nKK2 = torch.tensor(nKK, dtype=torch.float32, device='cpu')
                # Now use these tensors as inputs to your interpolation function
                nFIELD = fast_3D_interp_field_torch(f2r_field, nII2, nJJ2, nKK2)
                nII3 = nII2 + nFIELD[:, :, :, 0]
                nJJ3 = nJJ2 + nFIELD[:, :, :, 1]
                nKK3 = nKK2 + nFIELD[:, :, :, 2]
```
```
and saves them
        if args.separate_transforms is not None:
            print("args.separate_transforms is not None")
            # Correctly combine the prefix with the filename
            fwd_field_dir = os.path.dirname(args.fwd_field)
            fwd_field_basename = os.path.basename(args.fwd_field)
            nonlinear_fwd_field = os.path.join(fwd_field_dir, nonlinear_prefix + fwd_field_basename)
            print(f"  Saving nonlinear field to: {nonlinear_fwd_field}")
            try:
                nonlinear_field = torch.stack([nII3, nJJ3, nKK3], axis=-1)
                print(f"  Nonlinear field shape: {nonlinear_field.shape}")
                save_volume(nonlinear_field, Raff, Rh, nonlinear_fwd_field, n_dims=3)
                print("  Nonlinear field saved successfully")
            except Exception as e:
                print(f"  Error saving nonlinear field: {str(e)}")
# Do the same for the affine field
            affine_fwd_field = os.path.join(fwd_field_dir, affine_prefix + fwd_field_basename)
            print(f"  Saving affine field to: {affine_fwd_field}")
            try:
                save_volume(torch.stack([sepARAS_X, sepARAS_Y, sepARAS_Z], axis=-1), Raff, Rh, affine_fwd_field, n_dims=3)
                print("  Affine field saved successfully")
            except Exception as e:
                print(f"  Error saving affine field: {str(e)}")
```
full python file attached.
but it doesn't work. When I try applying them to floating image one at a time, the images go haywire.

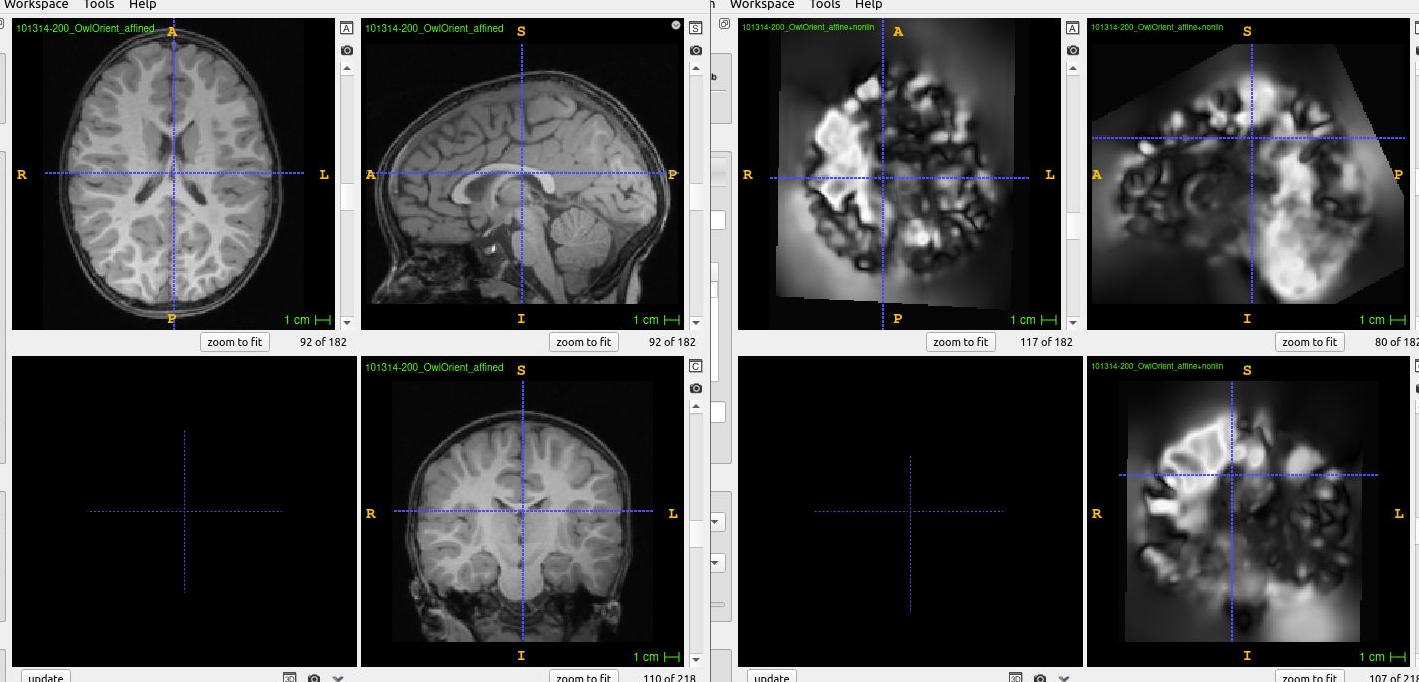

On the left is after applying the affine transform my code generated, on the right is applying the nonlinear transform onto the image on the left.
